So, I got my XDm 9mm yesterday and I had to tear it apart to see how this baby ticks and what makes it different than the good old XD. I decided to disassemble the entire frame and immediately came acrossed some differences with the XDm. I hopped online to find some answers and advice about disassembling the frame on the XDm and couldn't find any. So I began fooling around and figured out how to completely disassemble my XDm. Along the way I took over 100 pictures (literally) to make sure I could fix anything I messed up. So I'm all done, and my XDm still appears to function properly. I have been leeching off this great website for months and months, so I decided to give somthing back, share my discoveries, tragedies and experience with you all.

XDm 9mm Disassembly
(I don't imagine that the XDm .40 will be any different, but let us know if you find any!)



There are only a few differences with the XDm from the original XD, so here is a link to the very comprehensive disassembly guide for the XD that taught me everything I know:

Springfield Armory XD and HS2000.com

I will cover the entire frame disassembly for those of you who have not owned/disassembled an XD before, but please refer to the above link for even more comprehensive photos and instructions.


Tools needed:

Punches, 1/16, 1/8, 3/16.
Small hammer
Tweezers came in handy
Safety Glasses



Field Strip your weapon.

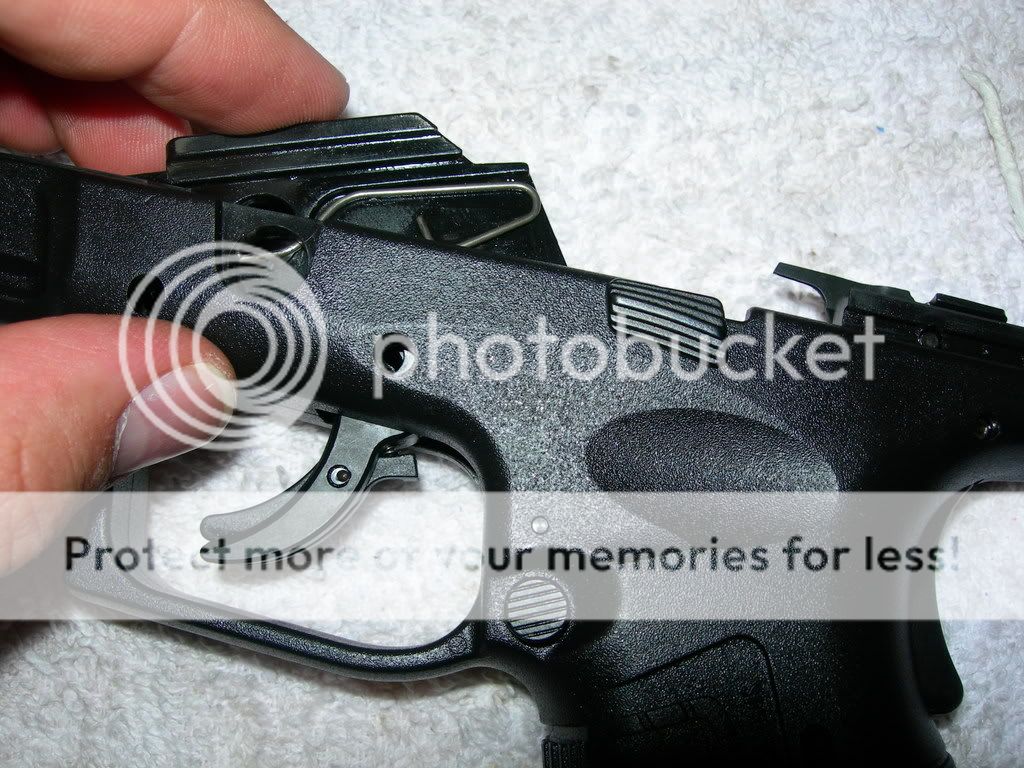

The 1st issue I ran into is that the disassembly lever no longer runs through the entire frame. How the heck am I going to push the disassembly lever out?

Here's how:

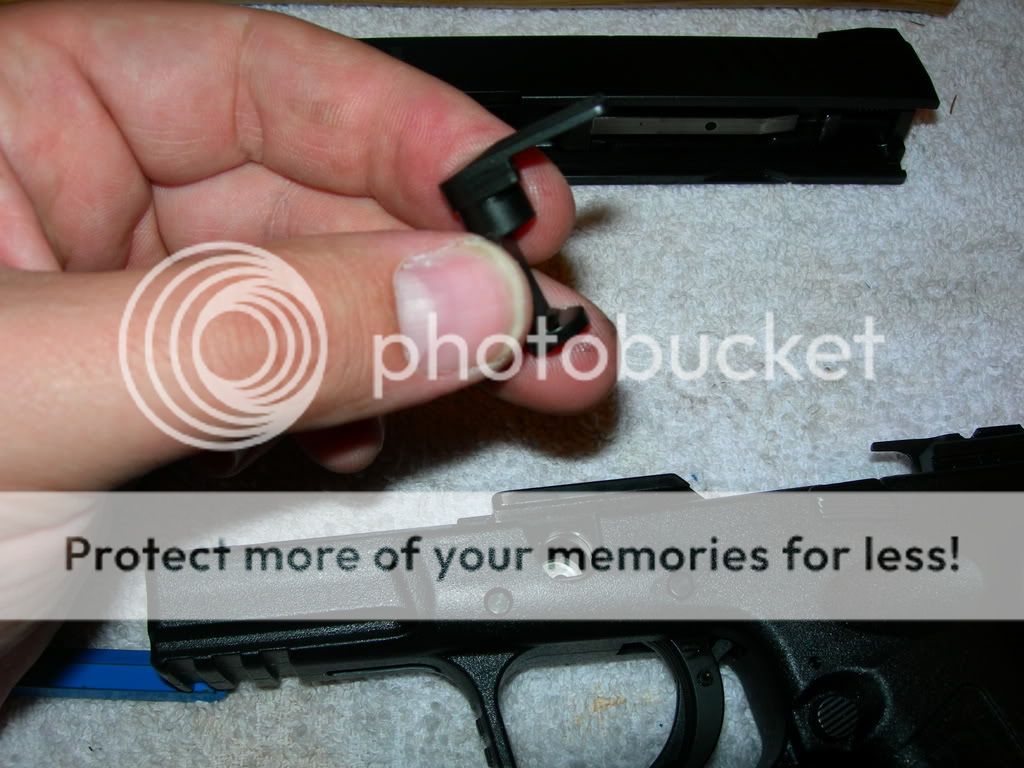

Turn the disassembly lever about 45 degrees to the LEFT or pointing at about 10 o'clock. You will know you are at the correct angle just after you hear a "click". Gently pull the disassembly lever out a bit. It will come free and then you simply need to twist it as you navigate it past the slide stop lever spring and pull it clear of the frame.





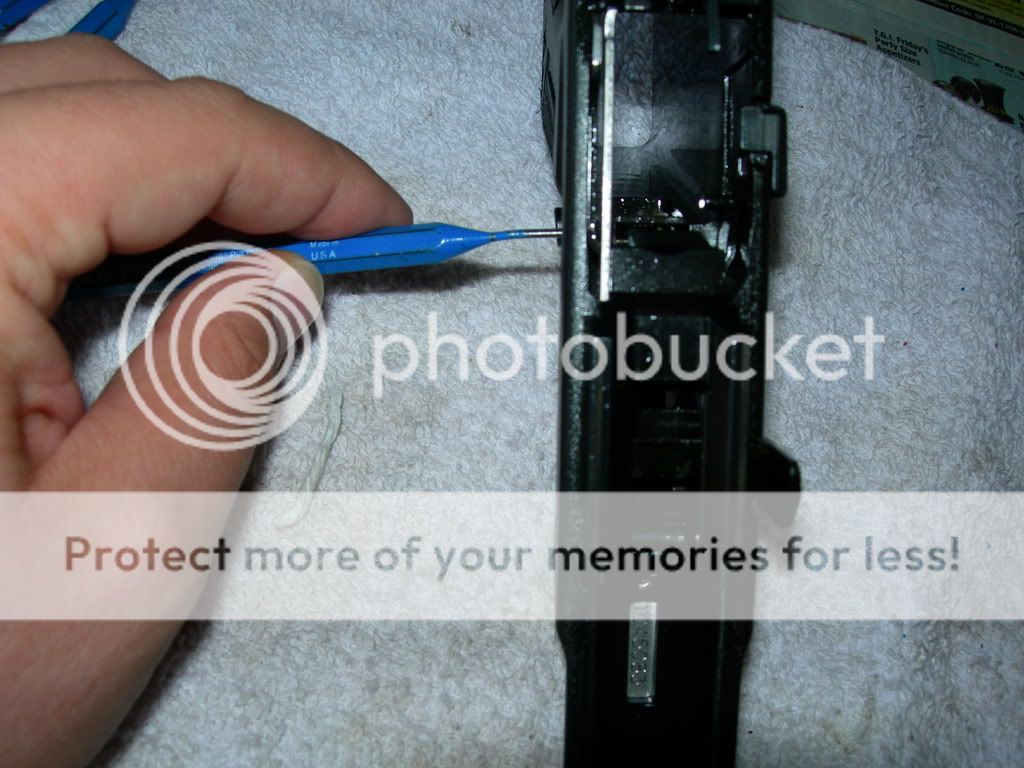

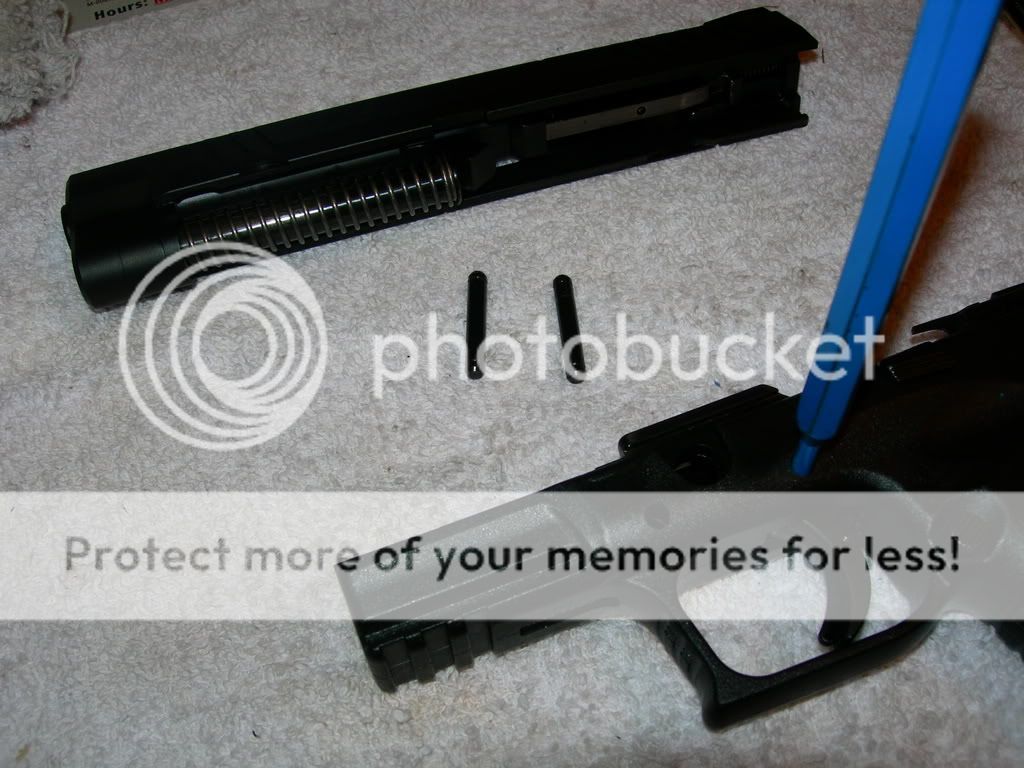

Next, remove the locking block. Using the 3/16 punch first remove the two pins holding in the locking block.



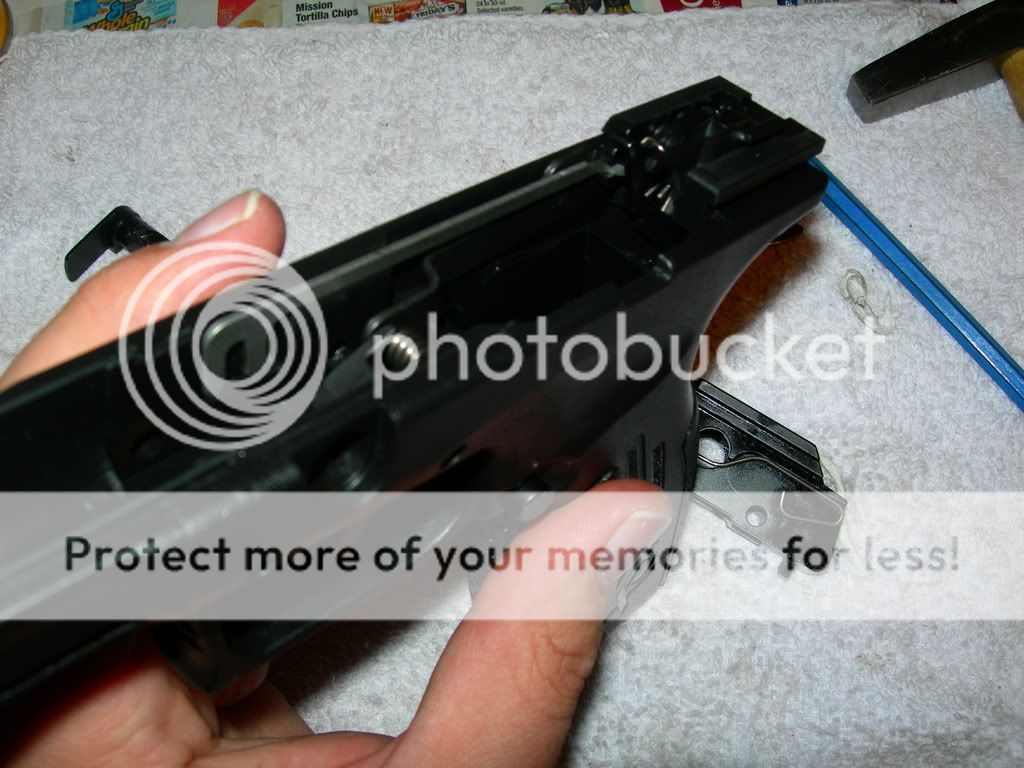

Then gently lift the locking block up out of the frame.



It should now be easy to remove the slide stop, Trigger assembly and... look at that another new piece! (I do not know the official name of this piece, but as far as I can tell, it acts as a safety so that when you field strip the firearm you no longer need to pull the trigger to free the slide.)



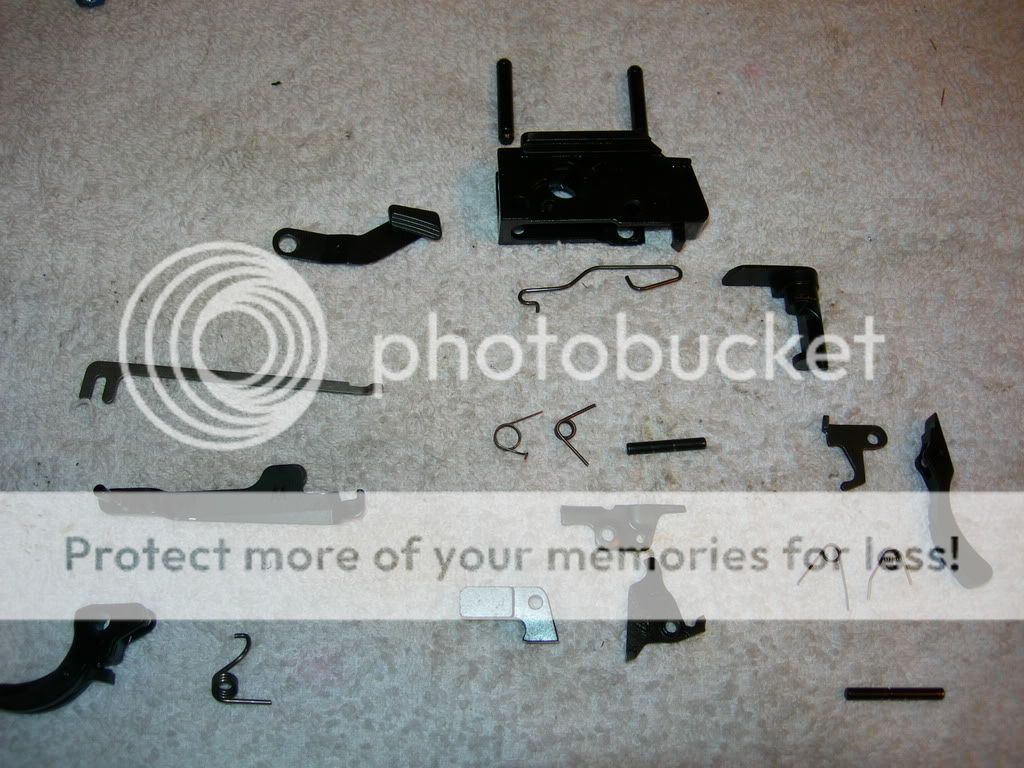

Here's what you should have so far:



Now, there are some new components in the rear frame as well. I removed these with the intention of polishing the sear components to hopefully slightly lighten/smooth the trigger pull, as I did this my XD .45. IT APPEARS TO ME THAT THE SEAR COMPONENTS HAVE A VERY DURABLE AND HIGHER QUALITY FINISH THAN THE REGULAR XD. I began using mothers polish on a few of the pieces and... they don't seem polishable, unless you feel like removing the finish that is on them, and I don't.

Now, you have your reasons for wanting to disassemble things, but I highly recommend staying out of here. Every thing comes apart fine, but getting everything back together isn't very much fun.

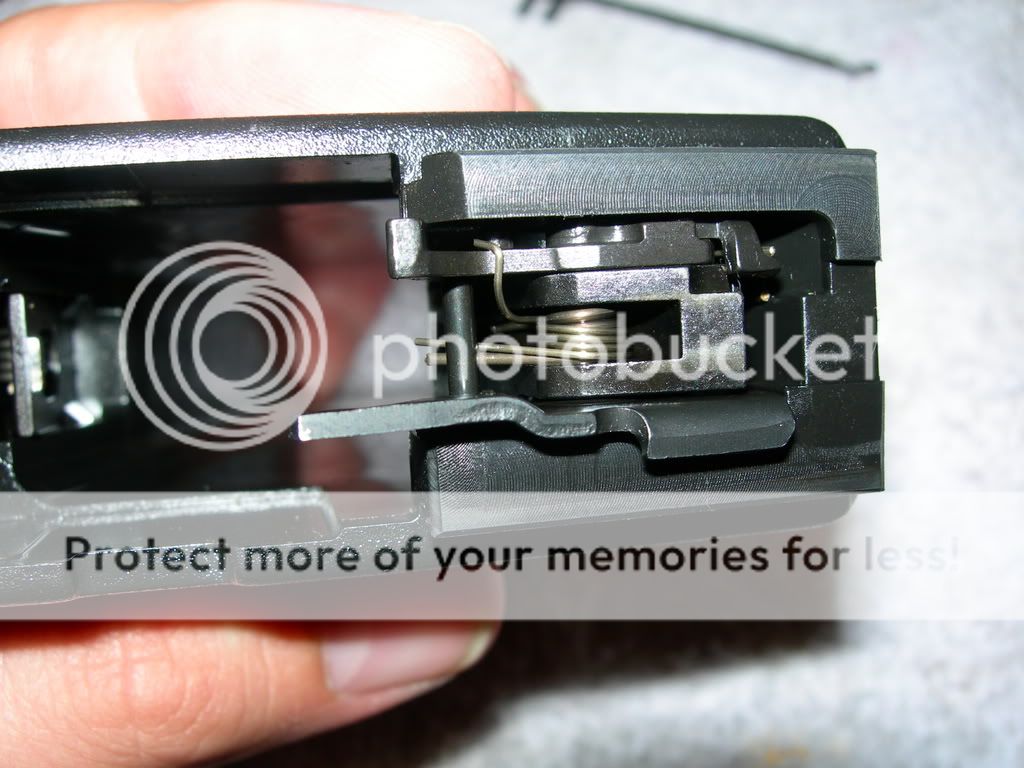

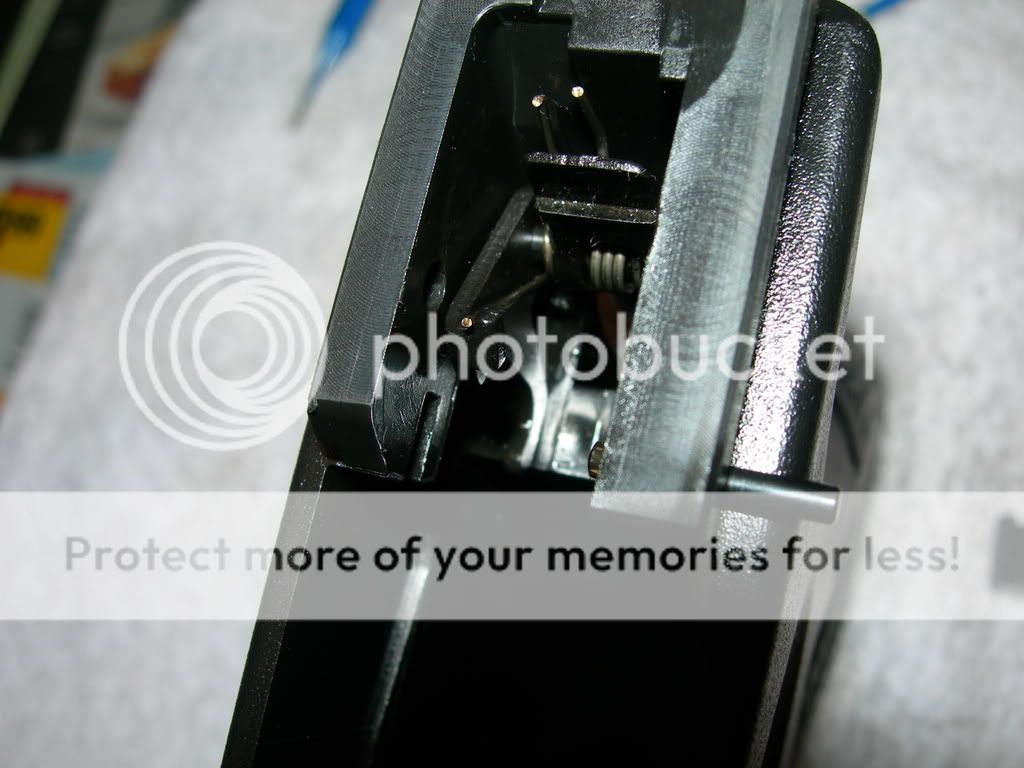

Please take notice at this time that there is a new sear spring(s) now. Pay close attention to how the 2 sear springs are wrapped around each other and how the new spring wraps up and over the safety lever.



Using a small punch or screwdriver move the smaller, front sear pin out of the way. It's not necessary to take this pin clear out of the frame, just give your self room to work.

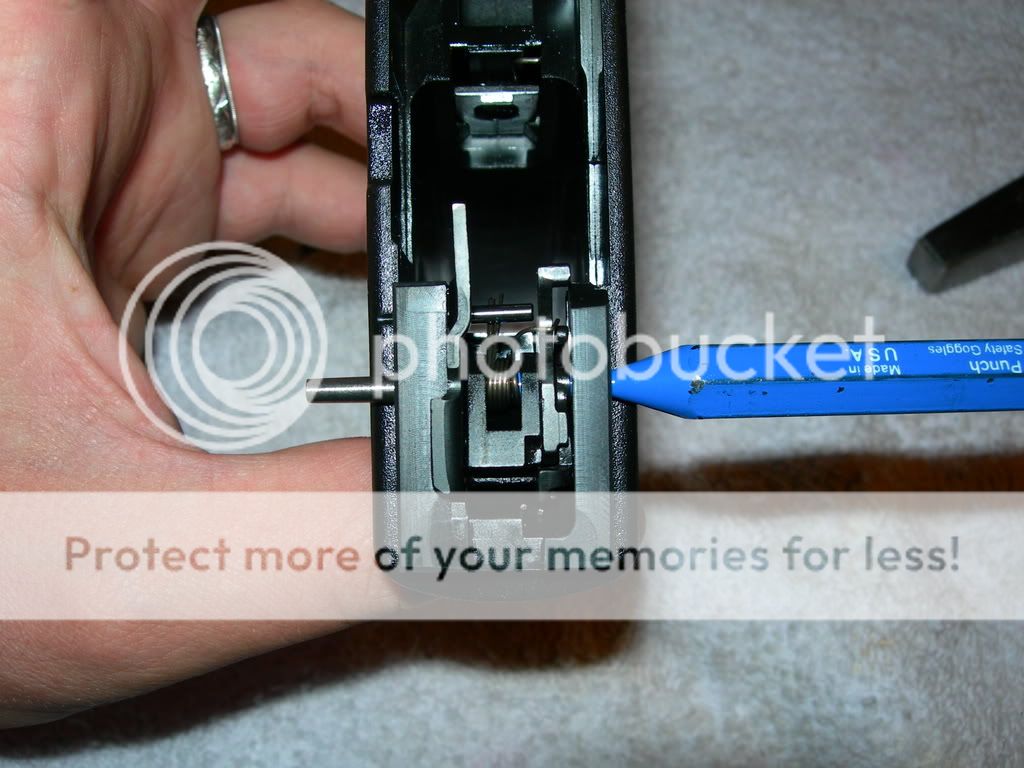

Now use the 1/8 punch to remove the sear pin CAREFULLY



I try to get the punch clear through.



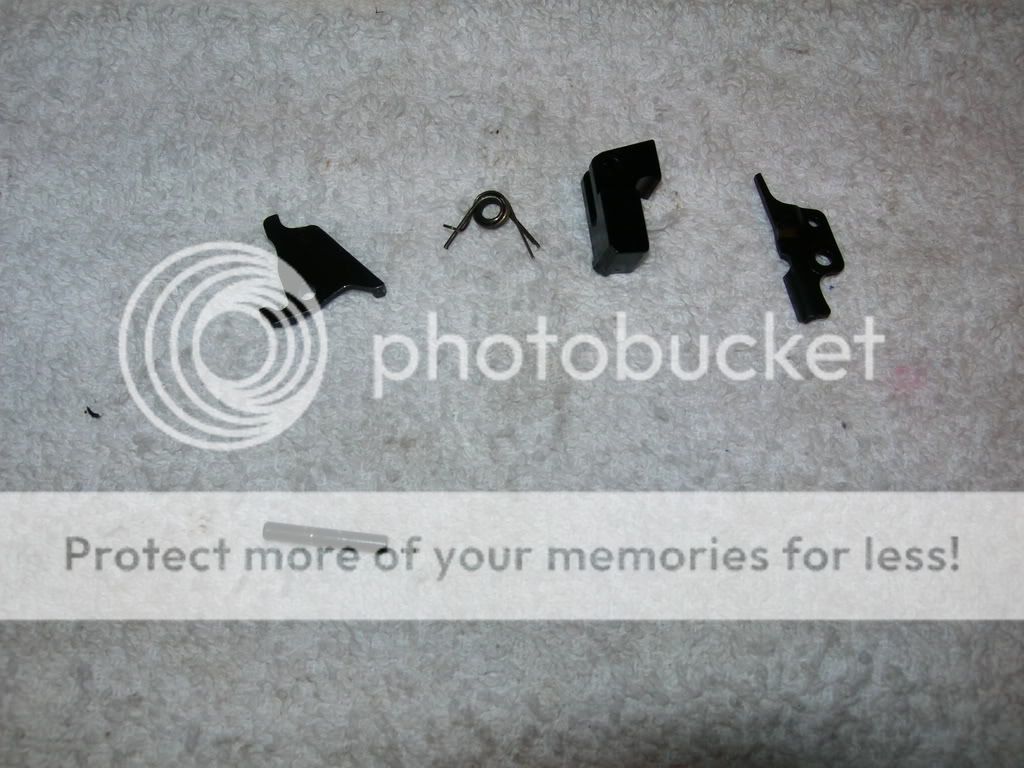

Carefully pull the punch out an be sure to watch where the sear springs drop. Remove the sear assembly and you should have a pile of parts like this:

safety lever, sear spring, sear and ejector.


Alright, all we have left is the grip safety, oh, and another new part. Again, I do not know the proper anatomical term for this piece but I am thinking that it is part of the safety system that allows you to field strip without pulling the trigger.

At this point I HIGHLY advise you to stop here. Reassembling the grip safety with this new part and its spring was very difficult.

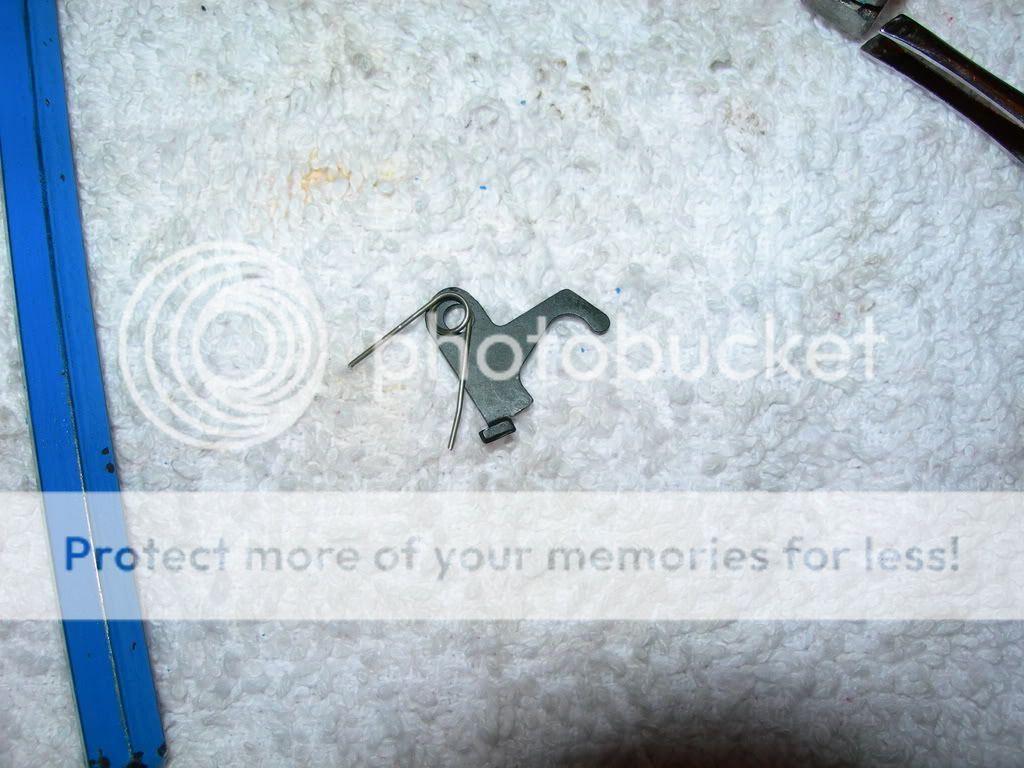

The new bits


Grip safety assembly from 2 angles



If you choose to remove these use the 1/8 punch again. THE GRIP SAFETY SPRING IS UNDER TENSION AND CAN POP OUT AND FLY ACROSS THE ROOM!!! Remove this carefully.

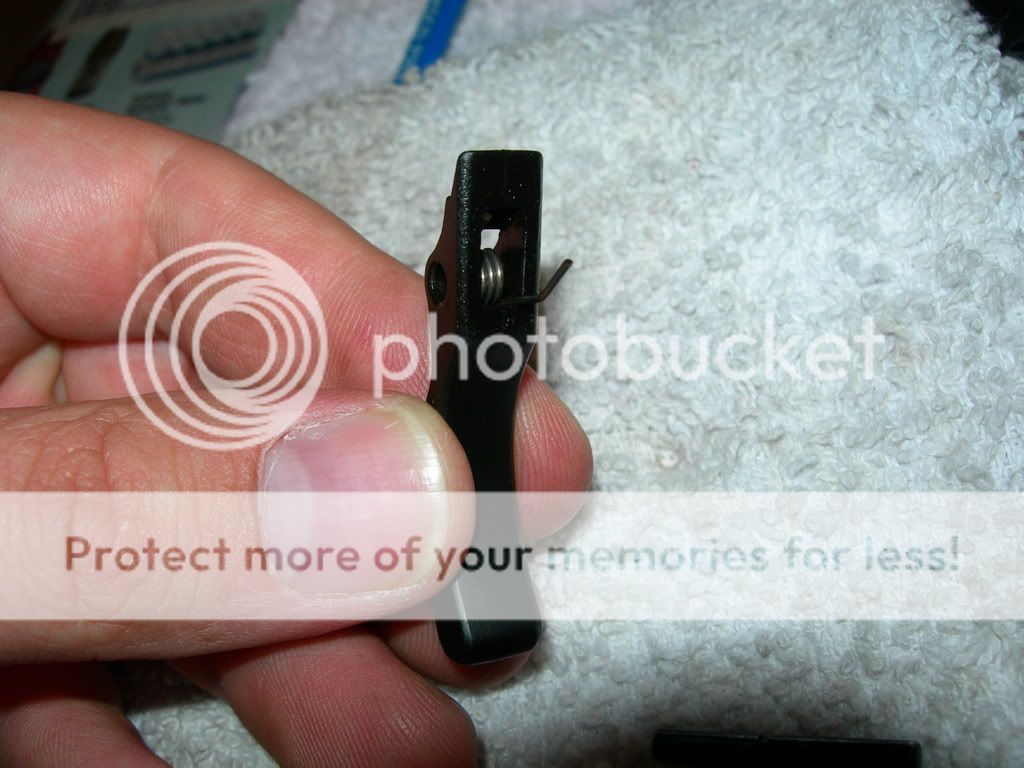

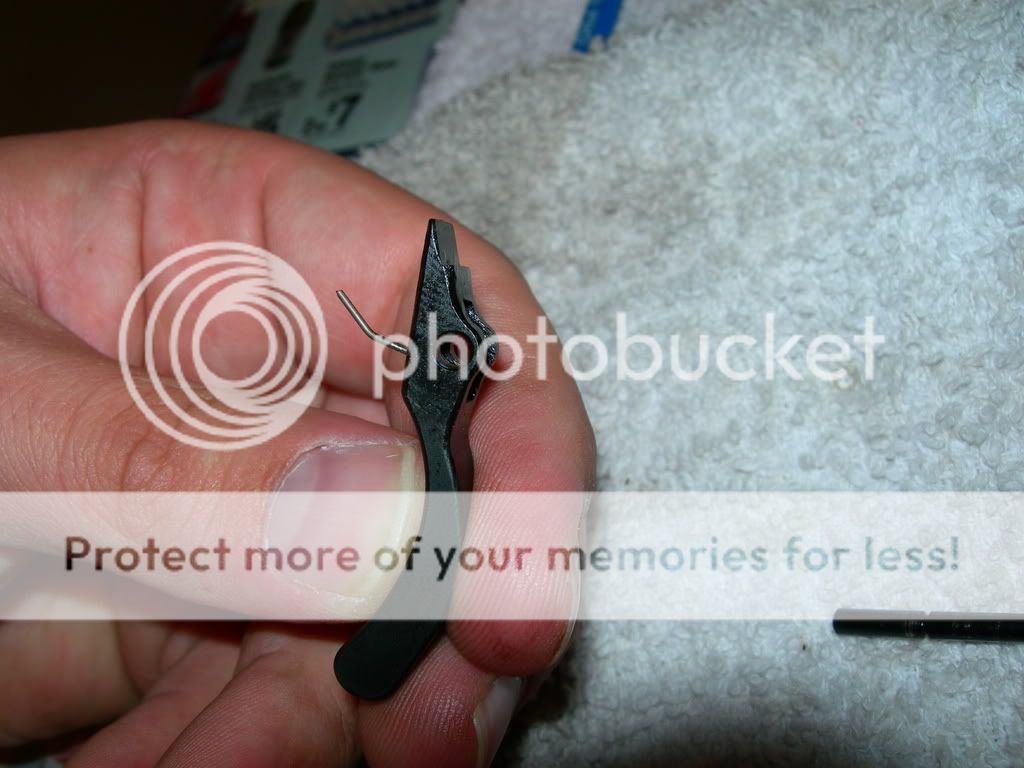

Here are a few photos of how the spring fits into the grip safety:



Also notice that the pin that holds the grip safety in place has a groove in it and this grove is off center. This must be reinstalled properly or your grip safety will not work.


If the front of the slide is facing you as you insert this pin the grove needs to be on the right side of the frame.



Magazine Release Removal Instructions:
There are no photos of this because I'm not messing with it! I have had the mag release out on my XD.45 twice and it is such a pain in the @$$ to do I'm not going to mess with it on my XDm(yet):)

Now, look at the frame with it pointing at you. I recommend driving the pin holding the mag release from the left out of the right --------->
I also recommend a mess of oil! On my XD .45 this pin is tight and as soon and you clear the pin from one side of the frame, the mag release spring starts pushing the pin, so it is no longer straight with the hole in the opposite side of the frame.



Once you get the pin out, everything will fall free and you can pull the mag release out of the frame. Before you do this, I recommend taking some pictures of your own, to help guide you during reassembly.





Reassembly Instructions

Read this post again backwards and put everything back in! :D

Reassembly is not too bad the only parts I'm going to hit on are the Grip Safety and the Magazine release but please post up any questions you may have or be struggling with.

Grip safety:

On the XDm, this really gave me alot of trouble during reassembly. I recommend putting the Grip Safety and spring together, and putting the it back into the frame without the new "disassembly safety" and its spring out all together. Lots of OIL! The spring in the grip release is not round on the right side, and getting your pin past it can be pretty though. Also remember that the pin has a notch in it that is off center. The straight part of the spring lines up with the groove if you have reassembled this correctly.


Once I finally accomplished this, I very slowly and carefully taped the pin back out just enough that I could set the "
disassembly safety spring" on the pin, and then the "disassembly safety"


Mag Release:

You will need a "slave pin" or an extra punch, to basically assemble the mag release, and then you put the pin back into the frame as you simultaneously push the slave pin out. GOOD LUCK :(







Well... It's 2 am :D I apologize in advance for any errors or mistakes I may have made in my sleepyness :D Please enjoy and don't hesitate to give me feedback or correct me on any mistakes I have made. I expect to have to edit this a time or two to get it up to snuff (and find out all the proper names for the new bits)


·
Registered
Joined
·
2,235 Posts
Excellent post thanks!!!!!


·
Premium Member
Joined
·
17,523 Posts
Full frame disassembly?????????
Why not the mag release and grip saftey??????????:confused:

I'm just kidding..;)
The grip saftey is a bit tricky.
The mag release is a bitch to get back in.

Great post.:mrgreen:
I was wondering what the differences were in the XD and XDM frames.


·
Premium Member
Joined
·
888 Posts
Discussion Starter · #5 ·
Edited:

Magazine release instructions added :D Don't take it apart though!

Some brief reassembly suggestions added.


·
Registered
Joined
·
463 Posts
Zetsumei,

Great Job......I will attempt to capture your posting in a word doc for future reference.


·
Registered
Joined
·
27 Posts
Thank you for saving my life :D. Last night i decided that i was going to take my gun all the way apart to clean and polish the **** out off it. Well... I guess i had more wine in me than i thought and when it came time to put it back together it didnt really go so well. I was up till 645am trying to figure it out and finally i just gave up and said i would just take it to a gun smith. Looked on here one more time this morning to see maybe just maybe i missed something on this site last night. I THEN FOUND A POST FROM GOD lol. Looked at your pics and had it back together in 15min. THANK YOU SO MUCH


·
Premium Member
Joined
·
888 Posts
Discussion Starter · #11 · (Edited)
I am not going to try it either. I feel so inadequate! :(

Just out of curiosity, how long did it take to disassemble it? And then to reassemble it?
I could have all those parts out and on the table in 5-10 minutes. And that's not because I'm good or anything, disassembly is really pretty simple. I think anyoen could do it that quickly if you have the right tools.

Putting it back together took me about an hour, maybe an hour and 15 minutes, but the majority of that time was spent on the Grip Safety. I had a hell of a time getting the Grip Safety pin past the straight side of the grip safety spring.

As a matter of fact, my wife comes out to the room I was working in and says, "Who are you talking to?"
I was on edge from trying to get this back together and I was a little rude, and said something like, I'm working on my XD, I'm not talking to anyone. She's all, "All I know is I hear you hissing "I'm gonna *Bleeping* kill you", I just wanted to know who you were talking too."
And that's why you should leave the Grip safety assembly alone :D

Thank you for saving my life :D. Last night i decided that i was going to take my gun all the way apart to clean and polish the **** out off it. Well... I guess i had more wine in me than i thought and when it came time to put it back together it didnt really go so well. I was up till 645am trying to figure it out and finally i just gave up and said i would just take it to a gun smith. Looked on here one more time this morning to see maybe just maybe i missed something on this site last night. I THEN FOUND A POST FROM GOD lol. Looked at your pics and had it back together in 15min. THANK YOU SO MUCH
Awesome, I'm glad to hear it helped :D I was sitting on the computer at like 11:00 last night looking at all the photos I had taken while I was working and decided to put this guide together. It only took me til 2:00 am to get it done.

I had some trouble with my XD .45 when I decieded to take it apart and found all the answers here on XDtalk.com so I decided to put this together knowing that it would come in handy from some one else. About time I gave something back! :-D

ToTP


·
Registered
Joined
·
105 Posts
Where was this when I took mine apart?? I did find a tip somewhere on the grip safety. Push a q-tip through the grip safety and spring to hold it in place, and clip it flush on both sides. This holds it together till you push it out re-installing the pin. Worked for me.... after the 1/2 hour of sweating and cursing.


·
Premium Member
Joined
·
111 Posts
Great post Z, there are plenty of XD posts by Prophead but the 'M' guys needed their own because of the few different parts. I shall use yours to put in the PR kit within a few days - I'll give a feedback on how it went. Thanks Dick


·
Registered
Joined
·
4,401 Posts
Great post! I'm afraid to break it down that far!


·
Premium Member
Joined
·
132 Posts
Doesn't everyone love when Zombie Hunter posts unexpectedly on a thread your reading. :D

Then again I can't concentrate on the thread anymore. :?


·
Registered
Joined
·
439 Posts
Zetsumei,
With your permission we would like to add this tutoral to our new updated site...
