my first post... filled with fiberglass

This is a discussion on my first post... filled with fiberglass within the Gear Talk forums, part of the Armory Talk category; so that the fiberglass doesnt stick to the bondo use cooking spray or vegetable oil. be sure to use real bondo. i used bondo glazing ...

Breadcrumb Image XDTalk Forums - Your XD/XD(m) Information Source! » Armory Talk » Gear Talk » my first post... filled with fiberglass

Reply
Old 04-16-2011, 07:58 PM   #11
XDTalk Member

Member #: 53333
Join Date: Feb 2011
Posts: 30
so that the fiberglass doesnt stick to the bondo use cooking spray or vegetable oil. be sure to use real bondo. i used bondo glazing stuff and it was a mistake because the pam soaked into it and getting to shell off was extremely difficult.[IMG][/IMG][IMG][/IMG][IMG][/IMG]
pulsator2199 is offline   Reply With Quote
Remove Ads
Old 04-16-2011, 07:59 PM   #12
XDTalk Member

Member #: 53333
Join Date: Feb 2011
Posts: 30
haha well its gunna really suck to have to wait till tomorrow cuz i have have to meet a bunch of friends!
pulsator2199 is offline   Reply With Quote
Old 04-16-2011, 08:34 PM   #13
XDTalk Member

Member #: 53333
Join Date: Feb 2011
Posts: 30
[IMG][/IMG]

Layer after layer it gets tougher and flexes less. The first couple of coats i did with it back on the gun because the heat caused by the fiberglass drying will warp it.[IMG][/IMG]
pulsator2199 is offline   Reply With Quote
Old 04-16-2011, 08:36 PM   #14
XDTalk Member

Member #: 53333
Join Date: Feb 2011
Posts: 30
if you have never fiberglassed before you have to sand and make rough the fiberglass between coats and its best to let it dry overnight. do not do it in your house or an attached garage or the fumes will get to you.!
pulsator2199 is offline   Reply With Quote
Old 04-16-2011, 08:38 PM   #15
XDTalk Member

knight wolf's Avatar

Member #: 55964
Join Date: Mar 2011
Location: sin city
Posts: 56
How much is this process costing
__________________
"Firearms are second ONLY to the Constitution; they are the peoples' liberty's teeth"
George Washington
knight wolf is offline   Reply With Quote
Old 04-16-2011, 08:39 PM   #16
XDTalk Member

Member #: 53333
Join Date: Feb 2011
Posts: 30
[IMG][/IMG]
[IMG][/IMG]
[IMG][/IMG]
Once its thick enough (like three layers) you can do it off the gun.
pulsator2199 is offline   Reply With Quote
Old 04-16-2011, 08:40 PM   #17
XDTalk Member

Member #: 53333
Join Date: Feb 2011
Posts: 30
[IMG][/IMG]
pulsator2199 is offline   Reply With Quote
Old 04-16-2011, 08:47 PM   #18
XDTalk Member

Member #: 53333
Join Date: Feb 2011
Posts: 30

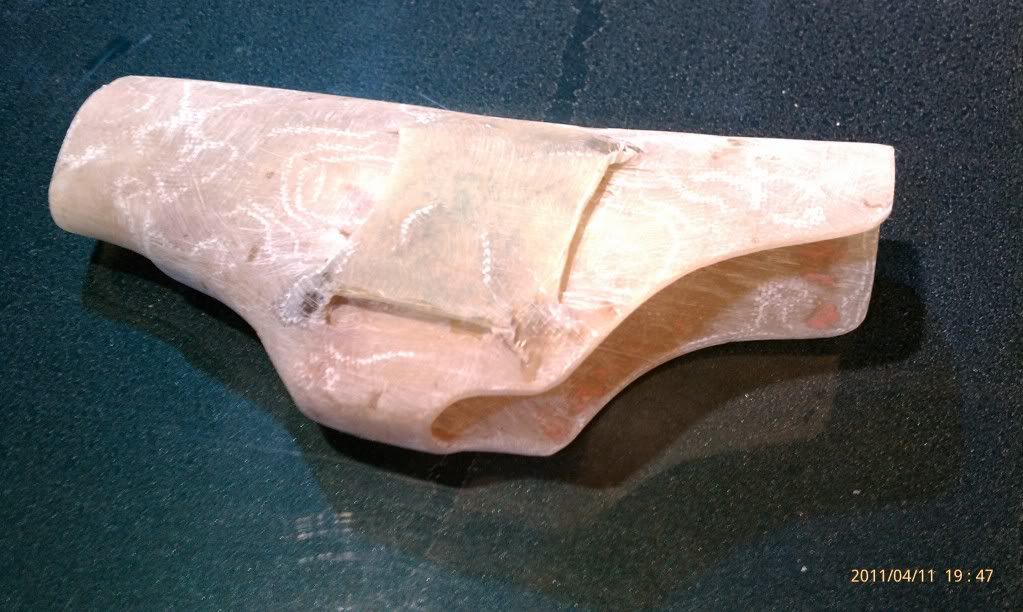

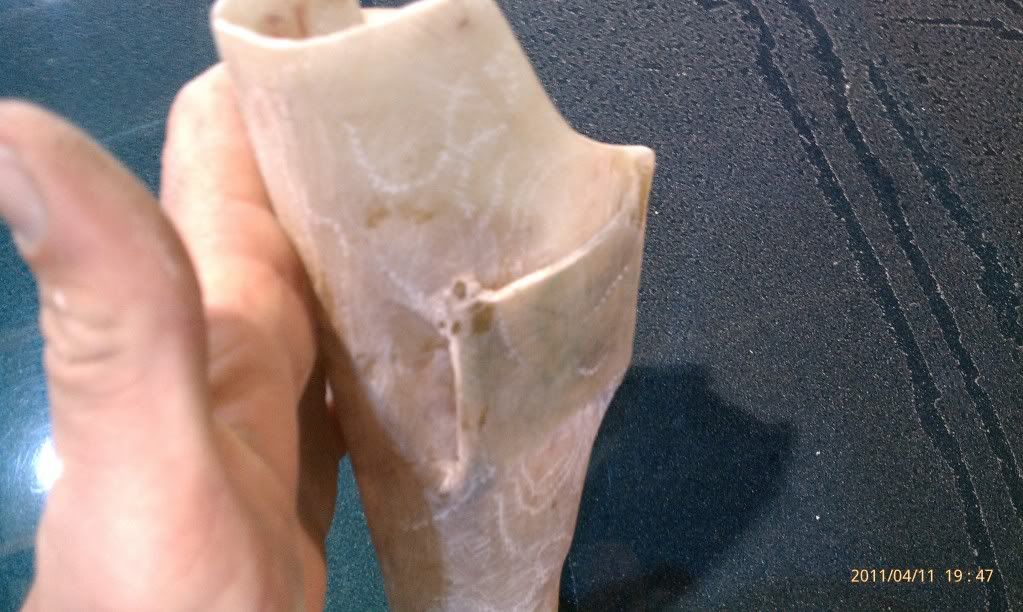

ok on to the next step... how to strap it. i formed a piece of styrofoam to fit the back of it about 2" by 2" and about a heavy1/8" thick. i put more fiberglass over that except for the sides. after a few layers i ground out the top and bottom to have straps going side to side and up and down.[IMG][/IMG][IMG][/IMG][IMG][/IMG]
As you can see in the last pic i finished how i wanted the shape and took some out at the back of the trigger gaurd so my middle finger can sit on the grip right and my trigger finger be over the trigger gaurd
pulsator2199 is offline   Reply With Quote
Old 04-16-2011, 08:49 PM   #19
XDTalk Member

Member #: 53333
Join Date: Feb 2011
Posts: 30
ok back to bowling ill post all the final poctures when i get home or tomorrow.
pulsator2199 is offline   Reply With Quote
Old 04-16-2011, 08:56 PM   #20
XDTalk 500 Member

tweek's Avatar

Member #: 53810
Join Date: Feb 2011
Location: Ohio
Posts: 592
Quote:
Originally Posted by knight wolf View Post
How much is this process costing
i think you can goto AutoZone and get i glass kit for less than $30 bucks, it is just time consuming unless you mix the resin heavy on hardener.
__________________
SA XD45c w/ 2 13rnd ,mags (stock for now)
mossberg 500a cruiser
Winchester model 97 16 ga. 2 3/4 (produced 1941-42)
taurus pt25 (new addition)
Belknap model B-967 .22 rifle
tweek is offline   Reply With Quote
